Roller-bed-type Pipe Plasma Cutting and Beveling Machine

Model: PPFUM-24A1/A2;PPFUM-16A1/A2
Performance Characteristics

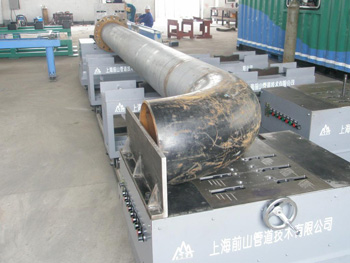

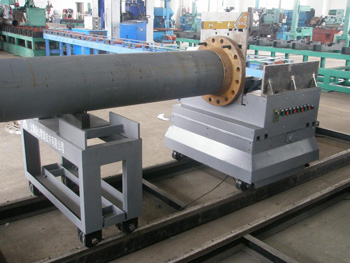

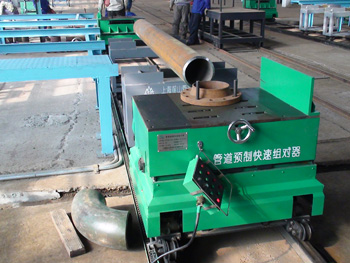

1. Weld Pipe-flange, Pipe-elbow quickly
2. High quality
3. Low labor intensity
Technical parameter
1. Pipe diameter: DN150-600(φ168-610);DN150-400(φ168-426);
2.Pipe: ≤6M (or according your requirement)
3. Group System: One set or two sets
Vertical Elevator: motor by lead screw or electricity
Left-Right Move: Linear
Flip Vertical: driven by gear , flip by motor
Vertical Move: light rail, motor by gear rack
4. Bracket System:
Load: 1500KG
Vertical Move: manual
5. Track System: one suit
Rail Length: 8M (or according your requirement)
Rail Type: light rail
