Pipe Bevel Machining Flow
Line(B-type)

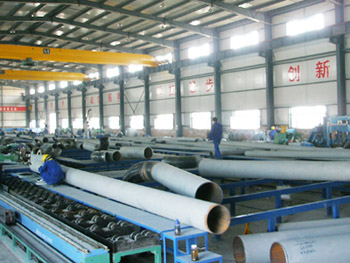

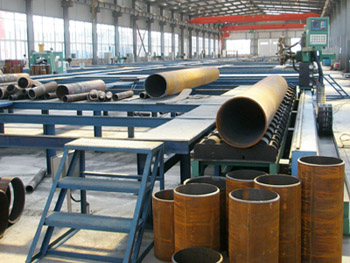

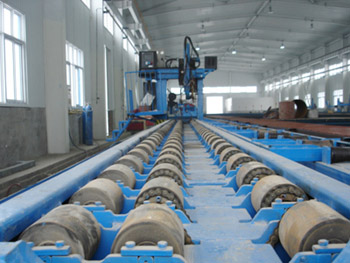

Pipe Bevel Machining Flow Line(B-type)
Pipe Bevel Machining Flow Line(B-type)
Pipe Bevel Machining Flow Line(B-type)
Model:PBMFL-24B
Performance
1.Basic Configuration: One Roller-bed-type Pipe Plasma Cutting and Beveling Machine, a Set of Logistics Transportation System, a Set of Pipe Cutting Length-Measuring System and a Set of Steel Structure Frame.
2. Production Efficiency: 3Min / One Bevel(DN200 SCH40 Carbon Steel)
3. Equipment Mobility: Low
4. Beveling Quality: Better
5.Application Range: Used in Piping prefabrication Production Line
Technical parameter:
1. Production Capacity: 800-1600 Diameter-Inch/Day
2. Pipe diameter: DN100-600(φ114-610)
3. Pipe thickness: 1-18
4. Pipe materials: Carbon Steel, Alloy Steel, Stainless Steel and Low Temperature Steel
5. Cutting Length: 6350MM
6. Bevel Type:Ｖ
7. Control System: SH-2000H CNC Cutting System
8. Logistics System: Pipe logistics Transportation System for Bevel Cutting Machine, Driving by Variable Frequency Motor or Manually
Performance
1.Basic Configuration: One Roller-bed-type Pipe Plasma Cutting and Beveling Machine, a Set of Logistics Transportation System, a Set of Pipe Cutting Length-Measuring System and a Set of Steel Structure Frame.
2. Production Efficiency: 3Min / One Bevel(DN200 SCH40 Carbon Steel)
3. Equipment Mobility: Low
4. Beveling Quality: Better
5.Application Range: Used in Piping prefabrication Production Line
Technical parameter:
1. Production Capacity: 800-1600 Diameter-Inch/Day
2. Pipe diameter: DN100-600(φ114-610)
3. Pipe thickness: 1-18
4. Pipe materials: Carbon Steel, Alloy Steel, Stainless Steel and Low Temperature Steel
5. Cutting Length: 6350MM
6. Bevel Type:Ｖ
7. Control System: SH-2000H CNC Cutting System
8. Logistics System: Pipe logistics Transportation System for Bevel Cutting Machine, Driving by Variable Frequency Motor or Manually
