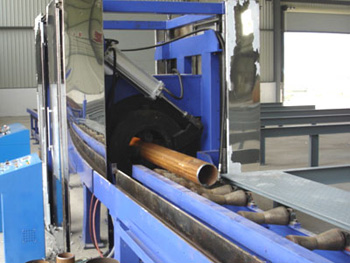

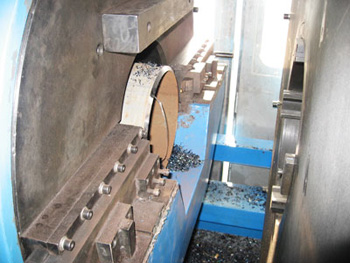

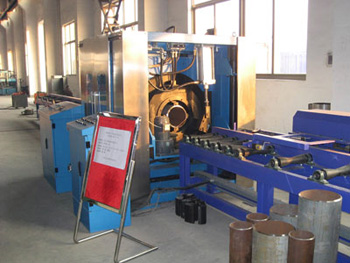

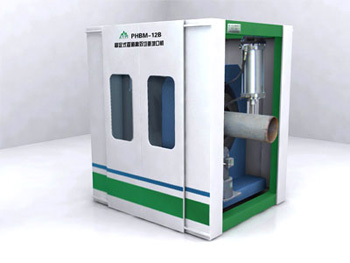

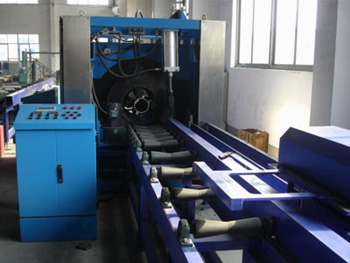

Fixed-type Highly-efficient Pipe Cutting and Beveling Machine

Fixed-type Highly-efficient Pipe Cutting and Beveling Machine

Fixed-type Highly-efficient Pipe Cutting and Beveling Machine

Fixed-type Highly-efficient Pipe Cutting and Beveling Machine

Fixed-type Highly-efficient Pipe Cutting and Beveling Machine

Fixed-type Highly-efficient Pipe Cutting and Beveling Machine

Model:FPCBM-12A
Performance Characteristics
1.On-line Performance: Excellent (designed for flow process)
2.Beveling Capacity: ≤5Min/ two pipelines (DN200 SCH40)
3.Cutting Capacity: two Bevelings per time
4. Beveling: high quality.
5. Cutting surplus: 0
6. Mobility: Low
7. Application: used in the cutting of common pipelines(large scale) with Ｖ beveling
8. Price: Higher than other Beveling Machine
Technical parameter:
1. Pipe diameter: DN50-300(φ60-325)
2. Pipe thickness: 3-18MM
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4. Type Of Bevel: Ｖ
5. Structure: suspended structure with 4 columns
6. Cutting Direction: radial direction
7. Driving System: driven by motor
8. Clamping System: clamping cylinder
9. Control System: PLC Frequency Control system with colorful Touch Screen
10.Control System of Definite Length: combined with Logistics System.
11. Auto Adjusting Core System: auto lifting device
12.Logistics System:driven by motor with frequency converter
