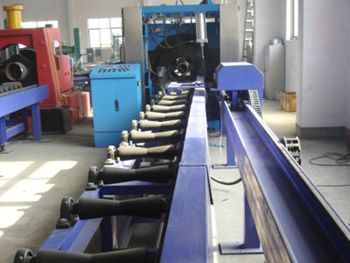

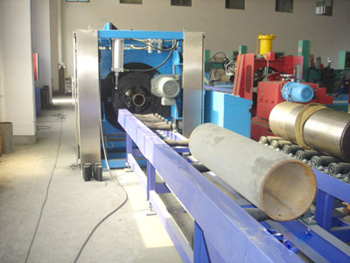

Pipe Logistics Transportation System for Cutting Beveling Machine

Pipe Logistics Transportation System for Cutting and Beveling Machine

Pipe Logistics Transportation System for Cutting and Beveling Machine

Model: PLTPS-24C1/C2
Performance Characteristics
1. Transportation pipeline automatically or manually
2.More safe if you use our Conveyor Machine for Pipe Band Saw Cutting
Technical parameter
1. Pipe diameter: DN50-600(φ60-610)
2. Pass Length: Inlet : ≥1000MM, Outlet : ≥500MM
3. Line Length: Inlet : 8M, Outlet : 7M (or according your requirement)
4.Line Height: 800MM
5. Roller Material: carbon steel with flange surface (encapsulation is available)
6. Transmission Speed: 2-20M/Min
7.Speed-regulation Mode: Manual or Variable-Frequency Stepless Speed Control System
8. Control System: Manual or PLC Control (according your requirement)
9.Turnover Mechanism: No or according your requirement
10. Lifting System: regulate the height automatically
