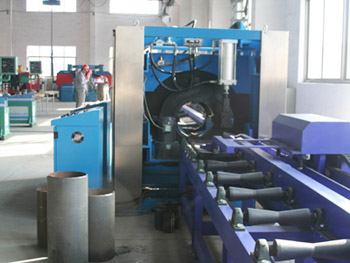

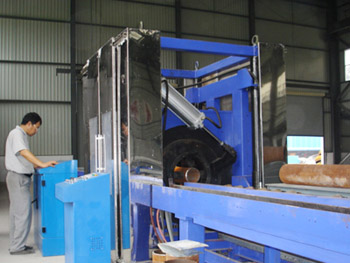

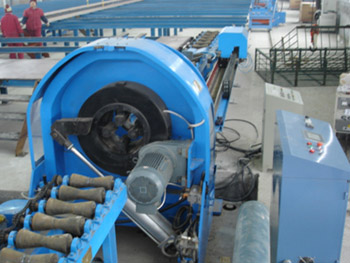

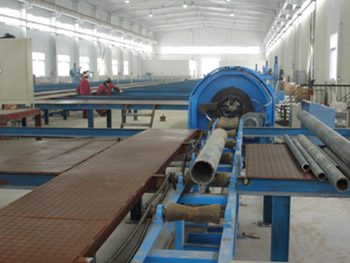

Pipe Bevel Machining Flow Line(A-type)
Pipe Bevel Machining Flow Line(A-type)
Pipe Bevel Machining Flow Line(A-type)
Pipe Bevel Machining Flow Line(A-type)
Pipe Bevel Machining Flow Line(A-type)
Model:PBMFL-12A
Performance
1. Basic Configuration: One Fixed-type Highly-efficient Pipe Cutting and Beveling Machine, a Set of Logistics Transportation System, a Set of Pipe Cutting Length-Measuring System and a Set of Steel Structure Frame.
2. Production Efficiency: 5Min / Two Bevels ( DN200 SCH40 Carbon Steel)
3. Equipment Mobility: Low
4. Beveling Quality: Good
5. Application Range: Used in Piping prefabrication Production Line
Technical parameter:
1. Production Capacity: 600-1200 Diameter-Inch/day
2. Pipe diameter: DN50-300(φ60-325)
3. Pipe thickness: 3-18MM
4. Pipe materials: Carbon Steel, Alloy Steel, Stainless Steel and Low Temperature Steel
5. Cutting Length: according to the Pipe Cutting Length-Measuring System
6. Bevel Type:Ｖ
7. Control System: PLC Control with Touch Screen
8. Logistics System: Pipe logistics Transportation System for Cutting and Beveling Machine, Driving by Variable Frequency Motor
9. Length-Measuring System: Mechanical Type, Functioning together with Logistics System
Performance
1. Basic Configuration: One Fixed-type Highly-efficient Pipe Cutting and Beveling Machine, a Set of Logistics Transportation System, a Set of Pipe Cutting Length-Measuring System and a Set of Steel Structure Frame.
2. Production Efficiency: 5Min / Two Bevels ( DN200 SCH40 Carbon Steel)
3. Equipment Mobility: Low
4. Beveling Quality: Good
5. Application Range: Used in Piping prefabrication Production Line
Technical parameter:
1. Production Capacity: 600-1200 Diameter-Inch/day
2. Pipe diameter: DN50-300(φ60-325)
3. Pipe thickness: 3-18MM
4. Pipe materials: Carbon Steel, Alloy Steel, Stainless Steel and Low Temperature Steel
5. Cutting Length: according to the Pipe Cutting Length-Measuring System
6. Bevel Type:Ｖ
7. Control System: PLC Control with Touch Screen
8. Logistics System: Pipe logistics Transportation System for Cutting and Beveling Machine, Driving by Variable Frequency Motor
9. Length-Measuring System: Mechanical Type, Functioning together with Logistics System
