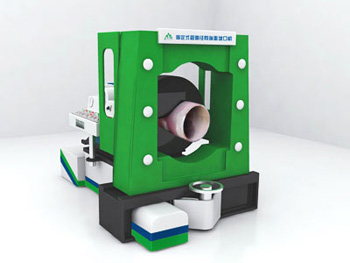

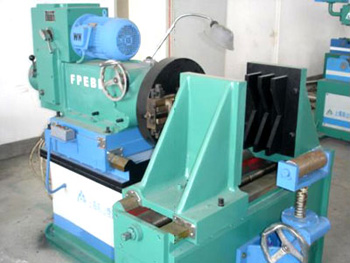

Model:FPEBM-24A1/A2;FPEBM-16A1/A2
Performance Characteristics
1.On-line Performance: Excellent (designed for flow process)
2.Beveling Capacity: ≤5Min/ pipeline (DN200 SCH40)
3. Cutting Capacity: one Beveling per time(cutting on Saw first)
4. Beveling: high quality
6. Mobility: Low
7. Application: used in the cutting of thick pipelines(large scale) with U, double Ｖ beveling
8. Price: lower than Pipe Cutting and Beveling Machine-Fixed
Technical Parameter:
1. Pipe diameter: DN100-600(φ114-610);DN50-400(φ60-426)
2. Pipe thickness: 6-180MM/10-70: 6-90/5-40MM
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4. Type Of Bevel: Ｕ、Ｘ、Ｖ、DoubleＶ
5. Structure: suspended structure with 4 columns
6. Cutting Direction: radial direction
7. Driving System: driven by motor
8. Clamping System: hydraulic cylinder, manual silk pole
9. Control System: Manual Control with Change Gear
10.Control System of Definite Length: NO
11. Auto Adjusting Core System: auto lifting device
12.Logistics System:driven by motor with frequency converter
13. Bracket System:manual silk pole
14. Spindle Speed: 9 Axes Shelves/6 Axes Shelves, 3 Axes Shelves/6 Axes Shelve
15. Axial Displacement: 150MM(Axis),300 MM(Head)/80 MM(Axis),100 MM(Head)/70 MM(Axis),100 MM(Head)
16. Transverse Displacement: ±100MM/±40MM/;±50MM/±30MM
