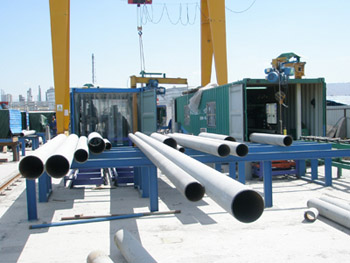

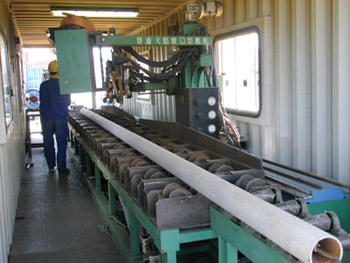

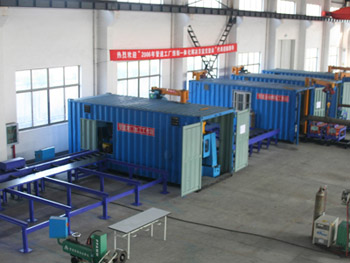

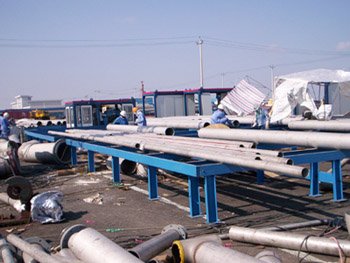

Transportable Piping Prefabrication Production Line
Transportable Piping Prefabrication Production Line
Transportable Piping Prefabrication Production Line
Transportable Piping Prefabrication Production Line
Transportable Piping Prefabrication Production Line
Model: TPPPL-24A
Performance:
1.Basic Configuration:a Certain Number of Pipe Bevel Machining Workstation, a Certain Number of Piping Automatic Welding Workstation, a Set of Logistics Transportation System and a Set of Steel Structure Frame.
2. Production Efficiency:High(Hoisting with cantilever crane, Beveling with Pipe Bevel Machining Workstation and Welding with Piping Automatic Welding Workstation.)
3.Equipment Movability:Excellent (without limitation of radiation radius by using container as carrier)
4.Application Range:Piping Projects are Widely Distributed from coast to coast but the Total Amount of Work are not large enough.
Technical Parameter:
1. Production Capacity:20-80 thousands Diameter-Inch /Month
2. Pipe diameter:DN50-600(φ60-610)
3. Pipe thickness:3-80MM
4. Conveying Speed:2-20M/Min
5. Beveling Speed:≤5Min / Two Bevels(DN200 SCH40)
6. Automatic Welding Rate:≥60%
7. Prefabrication Ratio: 50%~80%
8. Design Software: PDSOFT 3DPiping
9. Management Software: PDSOFT PPMIS
Performance:
1.Basic Configuration:a Certain Number of Pipe Bevel Machining Workstation, a Certain Number of Piping Automatic Welding Workstation, a Set of Logistics Transportation System and a Set of Steel Structure Frame.
2. Production Efficiency:High(Hoisting with cantilever crane, Beveling with Pipe Bevel Machining Workstation and Welding with Piping Automatic Welding Workstation.)
3.Equipment Movability:Excellent (without limitation of radiation radius by using container as carrier)
4.Application Range:Piping Projects are Widely Distributed from coast to coast but the Total Amount of Work are not large enough.
Technical Parameter:
1. Production Capacity:20-80 thousands Diameter-Inch /Month
2. Pipe diameter:DN50-600(φ60-610)
3. Pipe thickness:3-80MM
4. Conveying Speed:2-20M/Min
5. Beveling Speed:≤5Min / Two Bevels(DN200 SCH40)
6. Automatic Welding Rate:≥60%
7. Prefabrication Ratio: 50%~80%
8. Design Software: PDSOFT 3DPiping
9. Management Software: PDSOFT PPMIS
