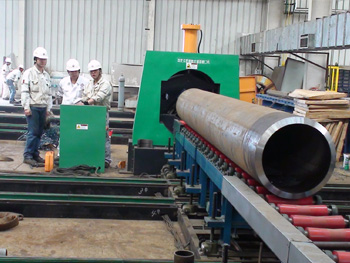

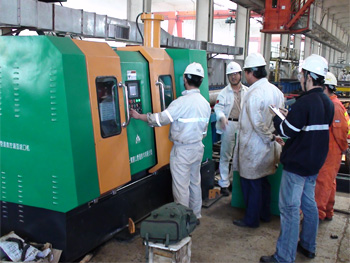

Fixed-type CNC Pipe End Beveling Machine


Fixed-type CNC Pipe End Beveling Machine

Fixed-type CNC Pipe End Beveling Machine

Fixed-type CNC Pipe End Beveling Machine

Fixed-type CNC Pipe End Beveling Machine

Model: FPEBM-24C1/ FPEBM-32C1; FPEBM-24C2/ FPEBM-32C2
Performance Characteristics
1. On-line Performance: Good (Designed as per the on-line equipment of the line production)
2. Beveling Capacity: ≤5Min /pipe bevel (DN200 SCH40)

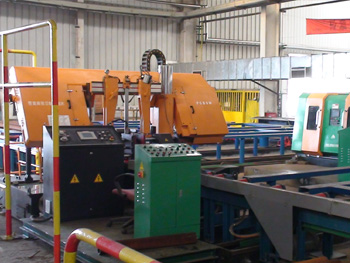

3. Bevel cutting: cutting a pipe with other equipment such as band saw and then machining each bevel

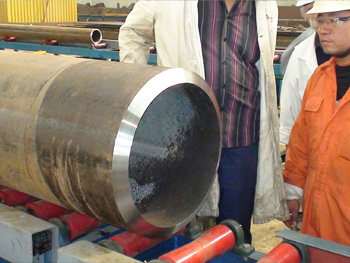

4. Bevel quality: very good
5. Mobility: low
6. Application: for machining the U or V shape bevels for numbers of pipes with thick wall
7. Price: higher than the Fixed-type Two-direction Pipe Beveling Machine

Technical Parameters
1. Applicable pipe diameter: DN200-800(φ219-830;DN100-600(φ114-610)/ DN200-800(φ219-830)
2. Applicable pipe wall thickness: 6-180MM
3. Applicable materials: carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
4. Bevel shape: U, X, V and Double V
5. Cutting direction: radial automatic differential cutting feed or axial semi-automatic motor cutting feed; radial CNC motor cutting feed or axial CNC motor cutting feed
6. Retracting direction: radial semi-automatic motor retracting or axial semi-automatic motor retracting; radial CNC motor retracting or axial CNC motor retracting
7. Driven system: by motor
8. Clamping system: work piece is clamped by hydraulic cylinder
9. Bracket system: screw lifting and lowering manually
10. Rev of the principal axis: step-less, VF
11. Lengthwise displacement: 150MM (principal axis), 300MM (machine head)
12. Widthwise displacement: ±100MM
13. Control system: PLC; CNC
14. Automatic aligning: An end beveling machine conveying system equipped with lifting and lowering device could be provided if necessary to adjust automatically the center elevation of the pipe, so as to bevel the pipes with different diameters.
15. Conveying system: End beveling VF conveying systems driven by motor are equipped at front and rear sides of the beveling machine if necessary.
