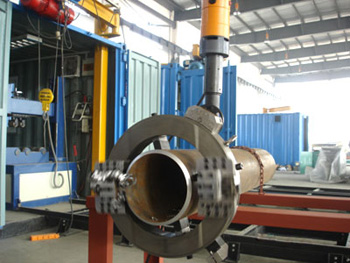

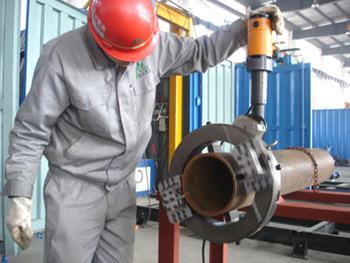

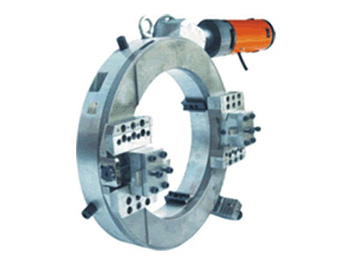

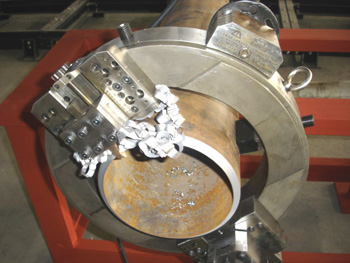

Movable Orbit-type Pipe Cutting & Beveling Machine
Movable Orbit-type Pipe Cutting & Beveling Machine
Movable Orbit-type Pipe Cutting & Beveling Machine
Movable Orbit-type Pipe Cutting & Beveling Machine
Movable Orbit-type Pipe Cutting & Beveling Machine
Model:MPCBM-42A/36A/30A/24A/18A/12A/06A
Performance Characteristics
1.On-line Performance:Good (designed for unflow process)
2.Beveling Capacity: ≤ 8 Min/ pipeline (DN200 SCH40)
3. Cutting Capacity: one Beveling per time(cutting on Saw first)
4. Beveling: high quality
6. Mobility: Excellent
7.Application: used in the cutting of thick pipelines(small scale) with Ｖ beveling
8. Price: lower than Pipe Cutting and Beveling Machine-Fixed
Technical Parameter:
1. Pipe diameter: φ870-1050/φ720-900/φ570-750/φ420-600/φ270-450/φ120-300/φ30-150
2. Pipe thickness: 25
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4. Type Of Bevel:Ｖ
5. Rotation Speed: 13r/min
6. Feeding: 0.10 mm/n
7. Clamping System: Multi-blade circular orbit, fixed with screw
Performance Characteristics
1.On-line Performance:Good (designed for unflow process)
2.Beveling Capacity: ≤ 8 Min/ pipeline (DN200 SCH40)
3. Cutting Capacity: one Beveling per time(cutting on Saw first)
4. Beveling: high quality
6. Mobility: Excellent
7.Application: used in the cutting of thick pipelines(small scale) with Ｖ beveling
8. Price: lower than Pipe Cutting and Beveling Machine-Fixed
Technical Parameter:
1. Pipe diameter: φ870-1050/φ720-900/φ570-750/φ420-600/φ270-450/φ120-300/φ30-150
2. Pipe thickness: 25
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4. Type Of Bevel:Ｖ
5. Rotation Speed: 13r/min
6. Feeding: 0.10 mm/n
7. Clamping System: Multi-blade circular orbit, fixed with screw
