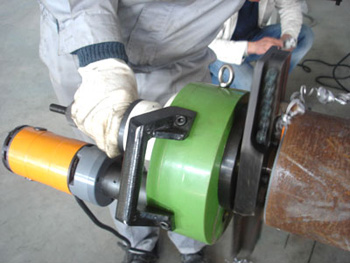

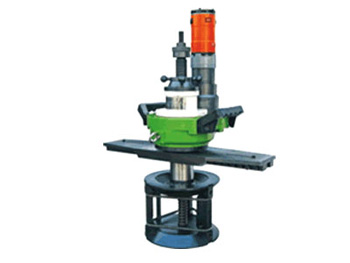

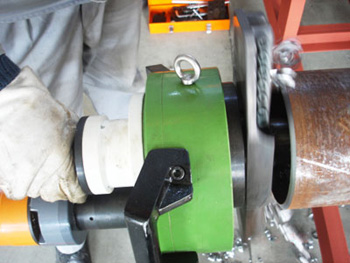

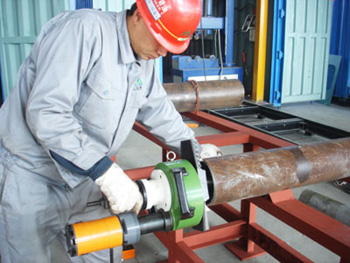

Movable internal-expanding Pipe End Beveling Machine
Movable internal-expanding Pipe End Beveling Machine
Movable internal-expanding Pipe End Beveling Machine
Movable internal-expanding Pipe End Beveling Machine
Movable internal-expanding Pipe End Beveling Machine
Model:MPEBM-14A2/14A1/10A2/10A1/06A/03A/01A
Performance Characteristics
1.On-line Performance:Good (designed for unflow process)
2.Beveling Capacity: ≤6 Min/ pipeline (DN200 SCH40)
3. Cutting Capacity: one Beveling per time(cutting on Saw first)
4. Beveling: high quality
6. Mobility: Excellent
7.Application: used in the cutting of common pipelines(small scale) with Ｖ beveling
8. Price: lower than Pipe Cutting and Beveling Machine-Fixed
Technical Parameter:
1. Pipe diameter: φ150-350/φ150-350/φ80-250/φ80-250/φ65-159/φ28-80/φ16-28
2. Pipe thickness: 80/20/75/20/20/15/15
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4. Type Of Bevel: Ｖ
5. Feeding Rotate Speed: 2 level
6. Clamping System: fast and auto positioning
Performance Characteristics
1.On-line Performance:Good (designed for unflow process)
2.Beveling Capacity: ≤6 Min/ pipeline (DN200 SCH40)
3. Cutting Capacity: one Beveling per time(cutting on Saw first)
4. Beveling: high quality
6. Mobility: Excellent
7.Application: used in the cutting of common pipelines(small scale) with Ｖ beveling
8. Price: lower than Pipe Cutting and Beveling Machine-Fixed
Technical Parameter:
1. Pipe diameter: φ150-350/φ150-350/φ80-250/φ80-250/φ65-159/φ28-80/φ16-28
2. Pipe thickness: 80/20/75/20/20/15/15
3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4. Type Of Bevel: Ｖ
5. Feeding Rotate Speed: 2 level
6. Clamping System: fast and auto positioning
