Piping Automatic Welding Workstation(A-type)

Piping Automatic Welding Workstation(A-type)

Piping Automatic Welding Workstation(A-type)

Piping Automatic Welding Workstation(A-type)

Piping Automatic Welding Workstation(A-type)

Model:PAWWS-24A
Performance Characteristics

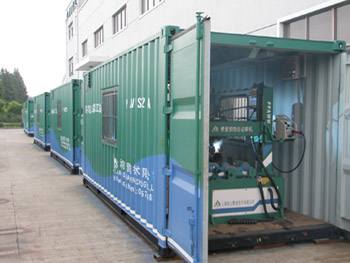

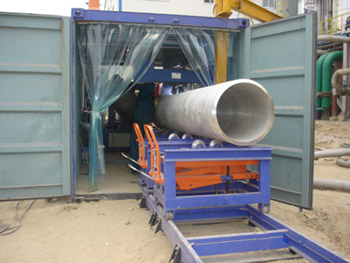

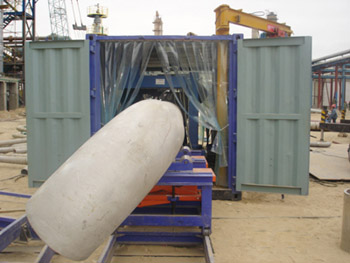

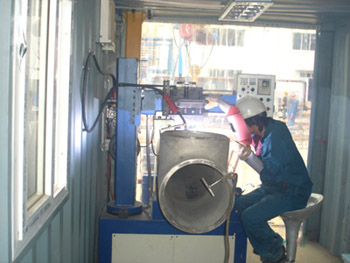

1.Structure: 6 meters container with special technology,2 Pipeline Prefabricated auto-Welding Machines, 2 Trolleys which is corollary equipment of auto Welding Machine, 2 cantilever cranes, 2 CO2 arc Welding Machines.
2. Production Capacity: 400-650 inch per day (DN200 SCH40) (The more output will be achieved with the use of cantilever crane and Pipeline Prefabricated auto-Welding Machine, while the output will fall with the use of Pipeline Prefabricated and Traveling Crane).
3. Mobility: Excellent (without limitation of radiation radius by using container as carrier)
4. Application: Used in the project with lots of common pipelines and a little of thick ones
Technical parameter:
1. Pipe diameter: DN50-600(φ60-610)
2. Pipe thickness: 3-60MM
3.Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.
4.Welding: tube-tube, pipe-pipe, tube-elbow, tube-flange, flange-flange, flange- elbow
5. Auto-welding cover rate: ≥60%
6. Pipeline Prefabricated Depth: 50%~80%
7. Design Software: PDSOFT 3DPiping
8.Management Software: PDSOFT PPMIS
