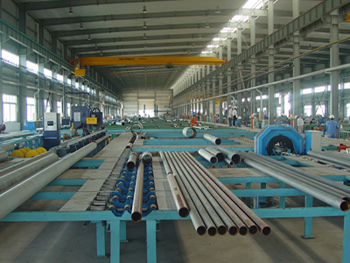

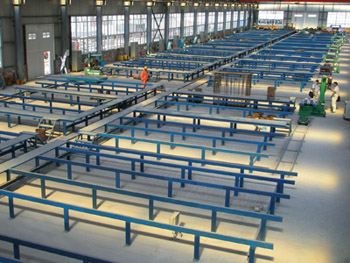

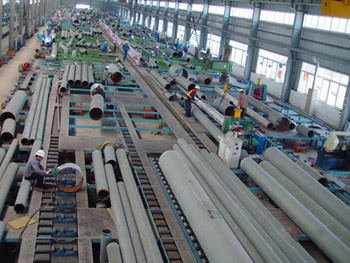

Piping Prefabrication Production Line (Fixed Type)


Piping Prefabrication Production Line (Fixed Type)

Piping Prefabrication Production Line (Fixed Type)

Piping Prefabrication Production Line (Fixed Type)

Piping Prefabrication Production Line (Fixed Type)
Model: FPPPL-24A
Performance:
1.Basic Configuration:One Fixed-type Highly-efficient Pipe Cutting and Beveling Machine, One Roller-bed-type Pipe Plasma Cutting and Beveling Machine, One Highly-efficient Pipe Cutting Band Saw Machine + Two Fixed-type Radial Pipe End Beveling Machine, a Certain Number of Piping Prefabrication Automatic Welding Machine or Piping cantilever Automatic Welding Machine, a Set of Logistics Transportation System and a Set of Steel Structure Frame.
2.Production Efficiency:Excellent(Hoisting with overhead traveling crane, Beveling with Highly-efficient Cutting and Beveling Machine and Welding with automatic Welding Machine)
3.Equipment Movability:Not Good
4. Application Range:Often Carrying on Piping Projects or Piping prefabrication Domestic Orders in 500KM and near to Coastal Harbor, Often Carrying on Piping prefabrication Overseas Orders.
Technical Parameter:
1.Production Capacity:20-150 Thousands Diameter-Inch/ Month
2. Pipe Diameter:DN50-600(φ60-610)
3.Pipe Thickness:3-80MM
4.Conveying Speed:2-20M/Min
5.Beveling Speed:≤5Min / Two Bevels(DN200 SCH40)
6.Automatic Welding Rate:≥60%
7. Prefabrication Ratio: 50%~80%
8. Design Software: PDSOFT 3DPiping
9. Management Software: PDSOFT PPMIS
