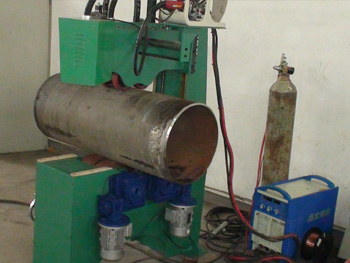

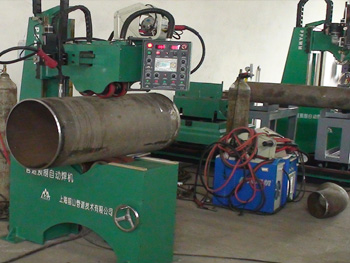

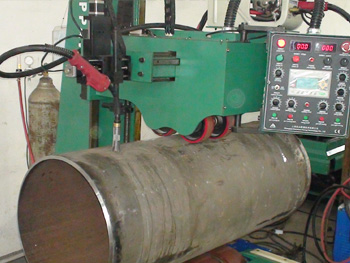

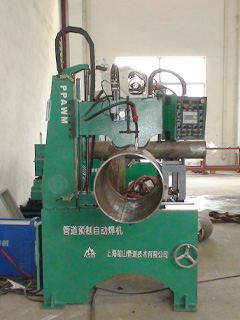

Piping Prefabrication Automatic Welding Machine (FCAW/GMAW) PPAWM-24A8

Piping Prefabrication Automatic Welding Machine (FCAW/GMAW) PPAWM-24A8

Piping Prefabrication Automatic Welding Machine (FCAW/GMAW) PPAWM-24A8

Piping Prefabrication Automatic Welding Machine (FCAW/GMAW) PPAWM-24A8

Piping Prefabrication Automatic Welding Machine (FCAW/GMAW) PPAWM-24A8

Model: PPAWM-24A8
Technical Parameters
1.Applicable pipe diameter: DN50-600(φ60-610)
2. Applicable pipe wall thickness: 3-20MM
3. Applicable materials: carbon steel, alloy steel, stainless steel and cryogenic steel
4. Applicable welding line: various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc (a fake pipe transition connection shall be applied if necessary).
5. Driving system: driven by two-row rubber roller and reducer
6. Clamping system: clamping arm move up-down and clamps by screw
7. Bracket system: separate type of trolley matching for Welding Machine, which may be adjusted along the track according to the length of the pipeline.
8. Counterweight system: no counterweight
9. Speed regulation mode: VF step-less speed control system

10. Adjustment mode: electric cross regulator
11. Oscillating system: a product of our patented technology, step motor driving and digital displaying oscillating width adjusting.
12. Control system: a product of our patented technology, PLC control
13. Welding mode: CO2 gas shielded arc welding
14. Welding power: our OEM products which are famous in China (or as per customer’s demands)
